Product description

Reliable Multi-Voltage Vehicle Detection

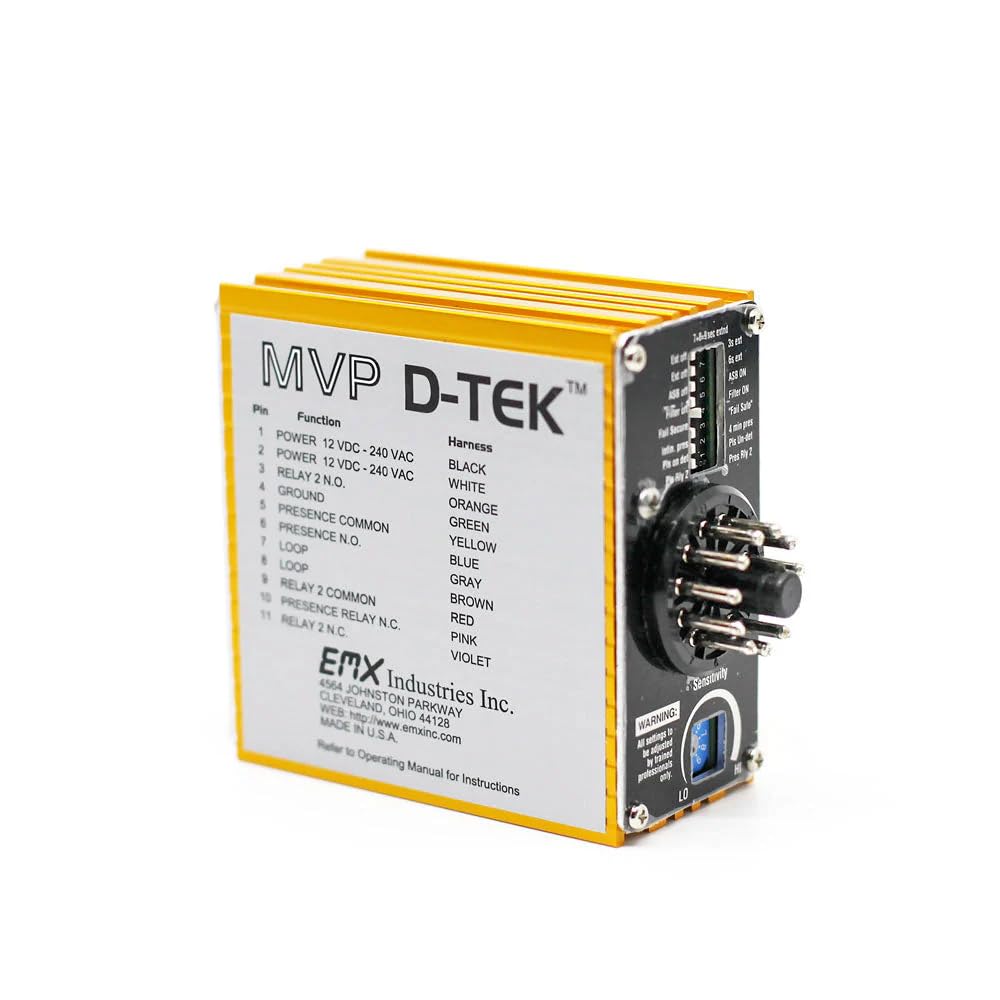

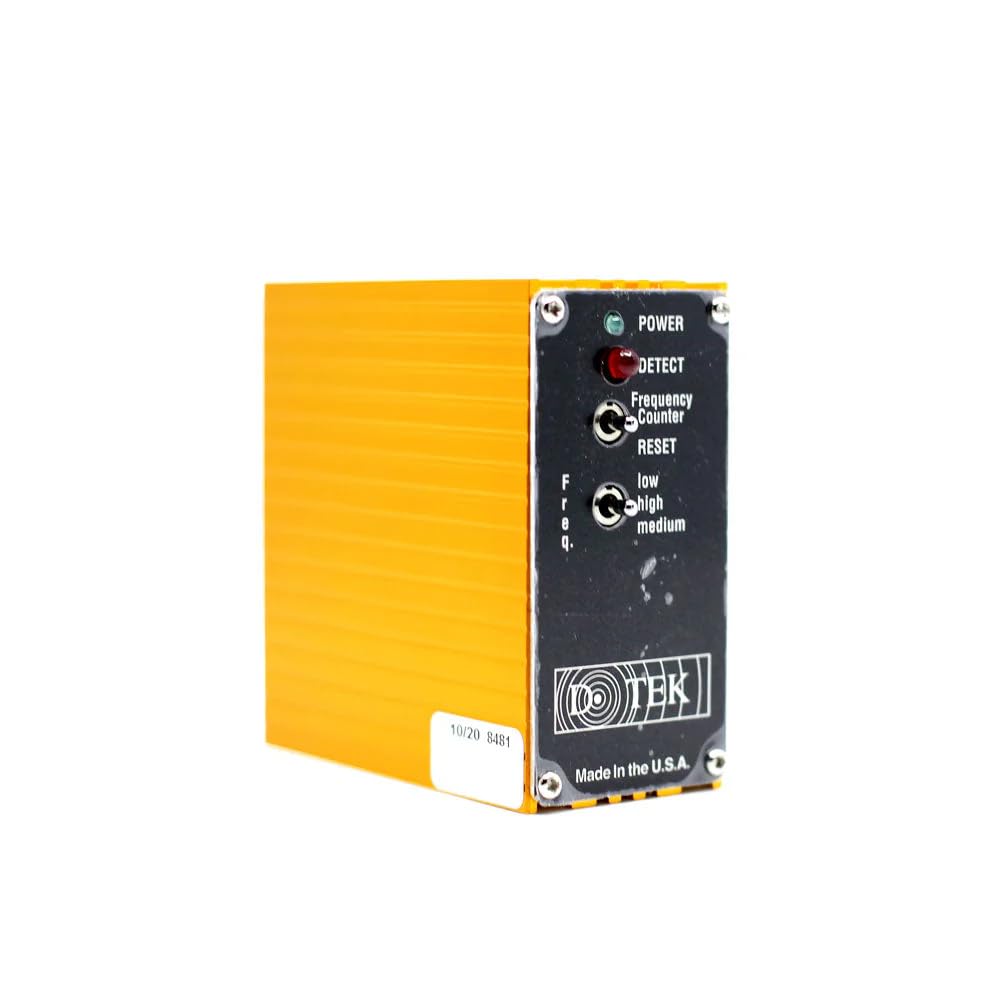

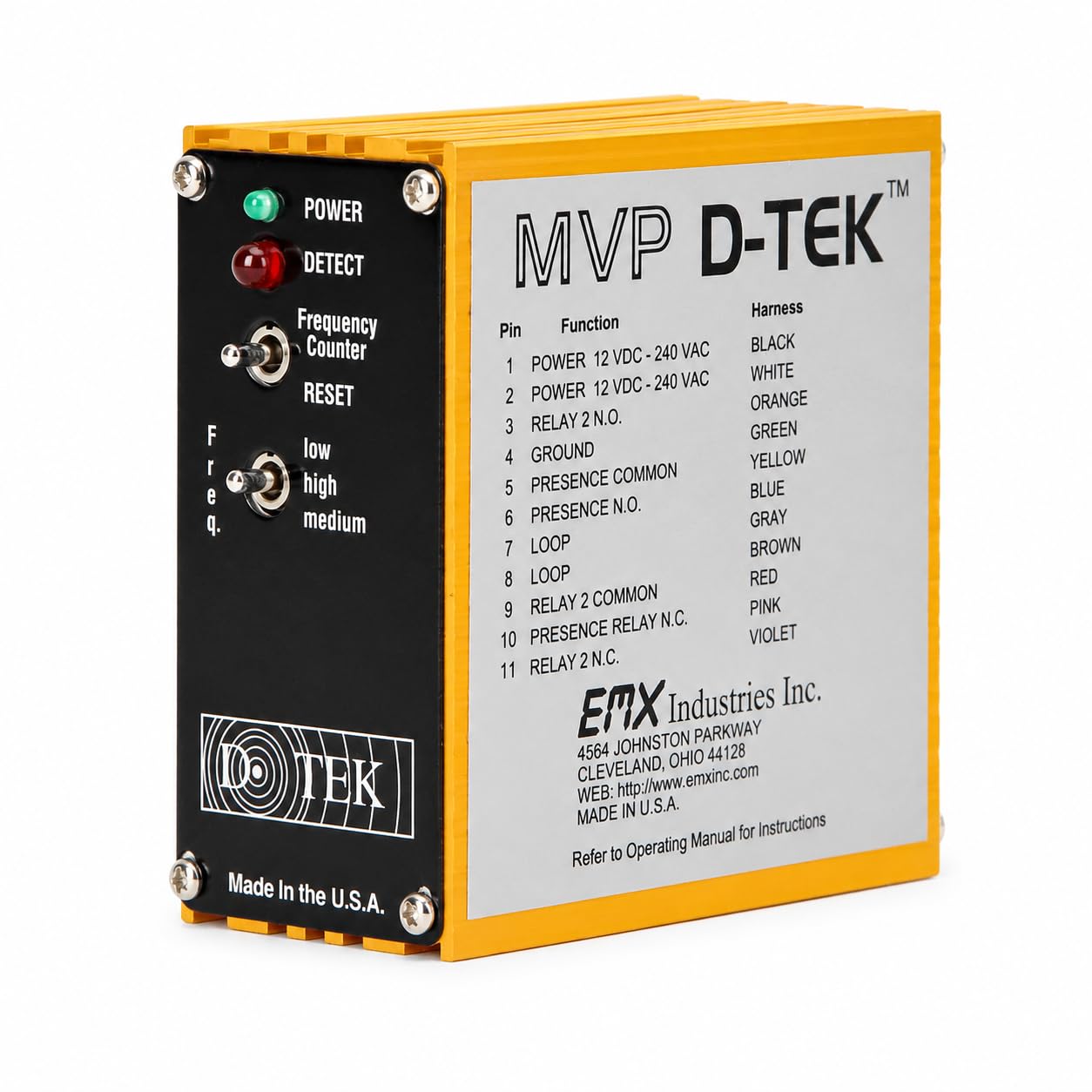

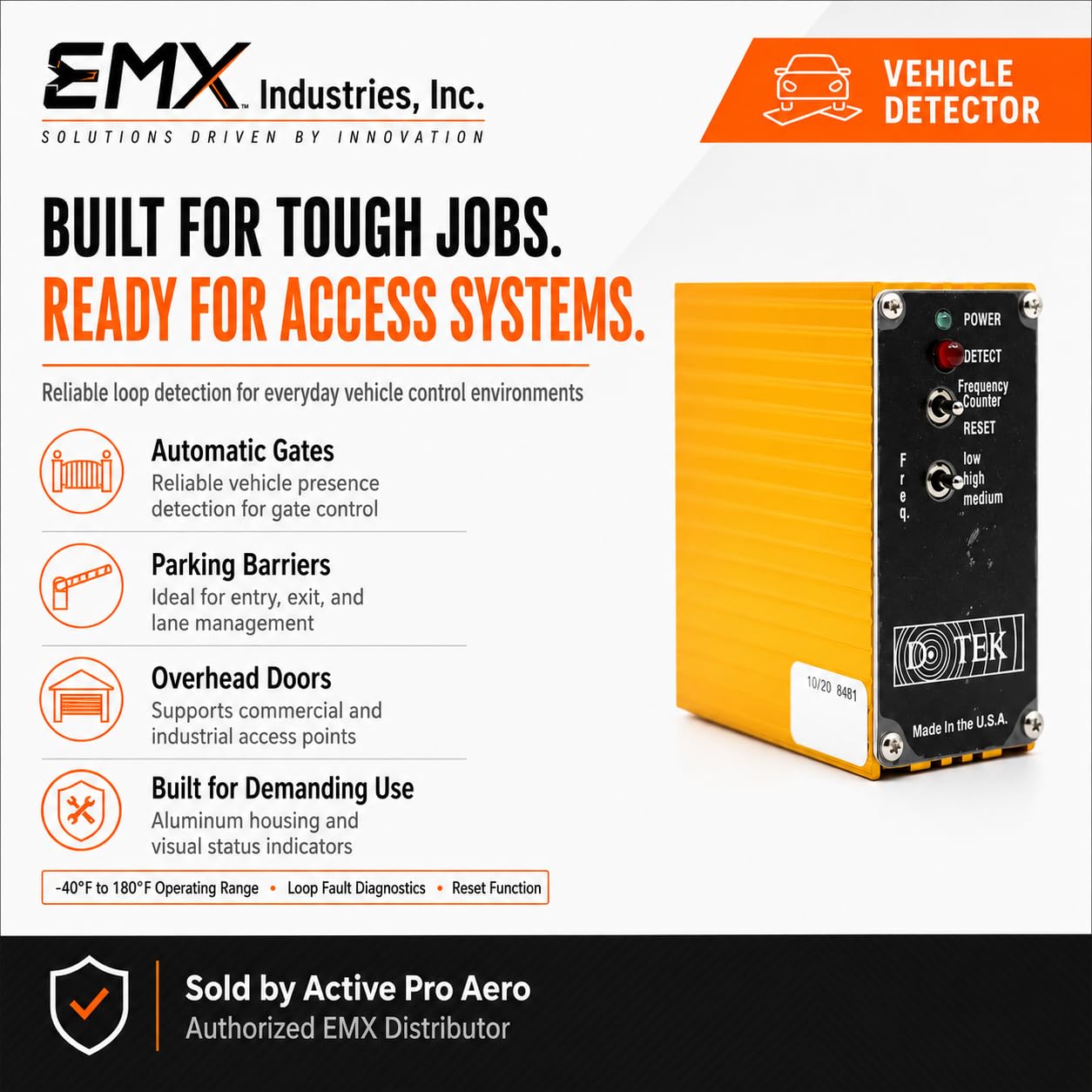

The EMX MVP D-TEK is a multi-voltage vehicle loop detector for gates, parking barriers, and commercial access systems. It helps deliver dependable vehicle detection while supporting flexible installation across a wide range of entry control applications.

Flexible Power and Advanced Detection Control

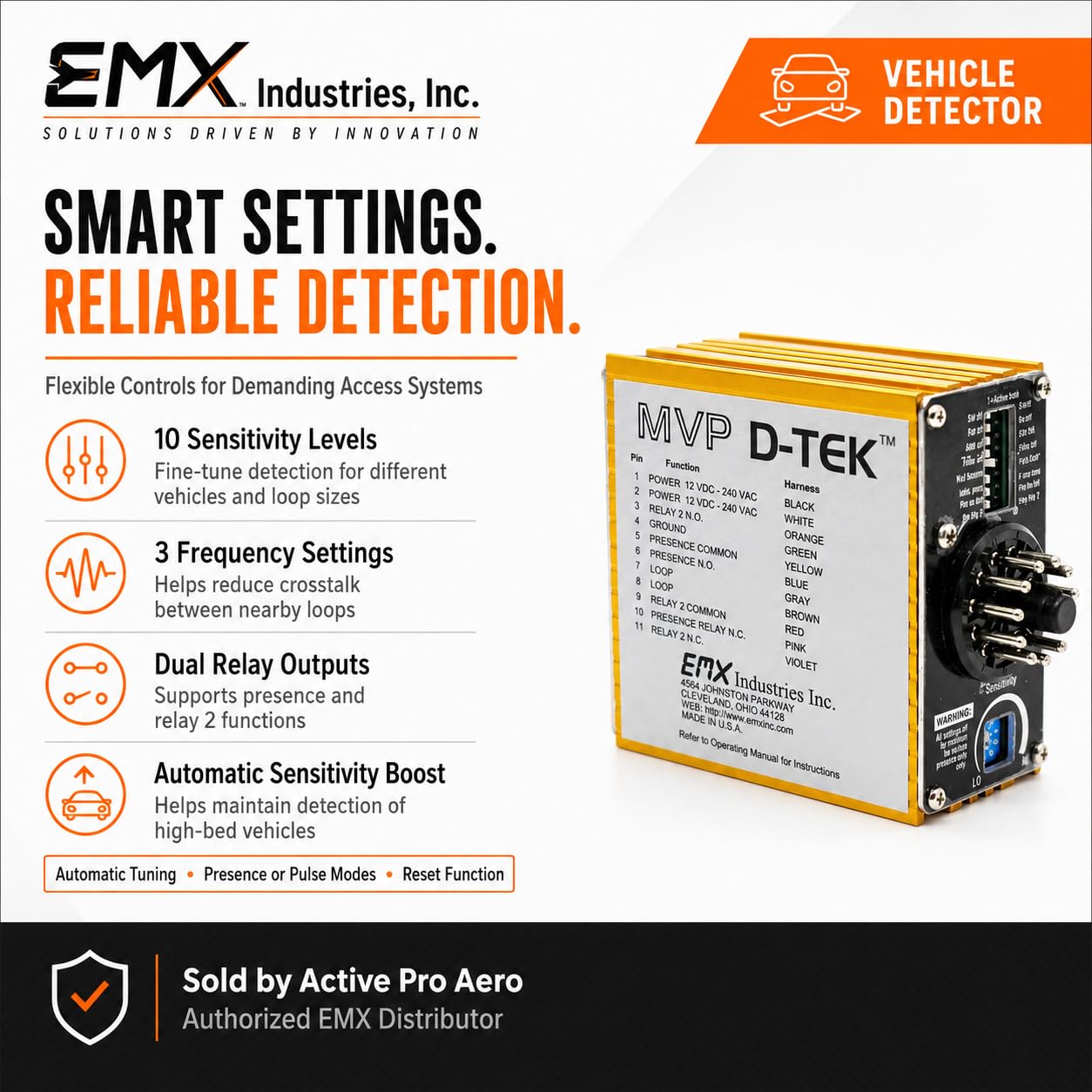

The MVP D-TEK supports 12–60 VDC or 12–240 VAC power and provides 10 sensitivity settings, three frequency selections, automatic sensitivity boost, loop diagnostics, and two output relays for flexible vehicle detection applications.

MVP D-TEK Technical Specifications

Power Supply 12–60 VDC or 12–240 VAC, 48–62 Hz Current Draw 19.2 mA Loop Frequency 3 settings: Low, Medium, High Sensitivity 10 adjustable settings Loop Inductance Range 20–2000 µH, Q factor of 5 or higher Output Relays 2 DPST relays, 1 A at 30 VDC Detection Modes Presence and pulse modes Fail Mode Selectable Fail Safe or Fail Secure operation Presence Options 4-minute limit or infinite presence Pulse Options Pulse on entry or pulse on exit Extend Detect Selectable 3, 6, or 9 second extension Automatic Sensitivity Boost Helps maintain detection of high-bed vehicles Tuning & Tracking Automatic tuning and environmental compensation Surge Protection MOV, neon and silicon protection devices Housing & Connector Anodized aluminum housing; 11-pin male connector

Multivoltage vehicle loop detector auto adjusts 12-60VDC or 12-240VAC 48-62Hz
Detects vehicles via induction loop, supports automatic tuning and tracking for environmental changes
Two output relays rated 1A at 30VDC, presence and second relay configurable for pulse or presence
10 sensitivity settings, loop diagnostics with frequency counter, filter mode and extend detect options
Anodized aluminum housing, loop inductance 20-2000uH, 11-pin male connector for DIN socket or harness
